12V 10W Solar Panel Kit Mono Caravan
12V 10W Solar Panel Kit Mono Caravan
Couldn't load pickup availability
Description
Extract solar power with this precisely engineered panel. It's portable and easy to carry, and installs wherever suits — rooftop, garden or campsite. Use it to charge your phone or any USB-powered device, and adjust the angle with the U-shaped metal stand to catch maximum sunlight.
The panel uses high-quality monocrystalline cells, which capture solar energy at the highest efficiency for maximum output. It's protected by toughened tempered glass with waterproof capability, so heavy rain isn't a problem. The panel sits in a heavy-duty aluminium frame with plastic protectors on all four corners, and comes with alligator clips for quick connection.
Key features
- Tempered glass surface

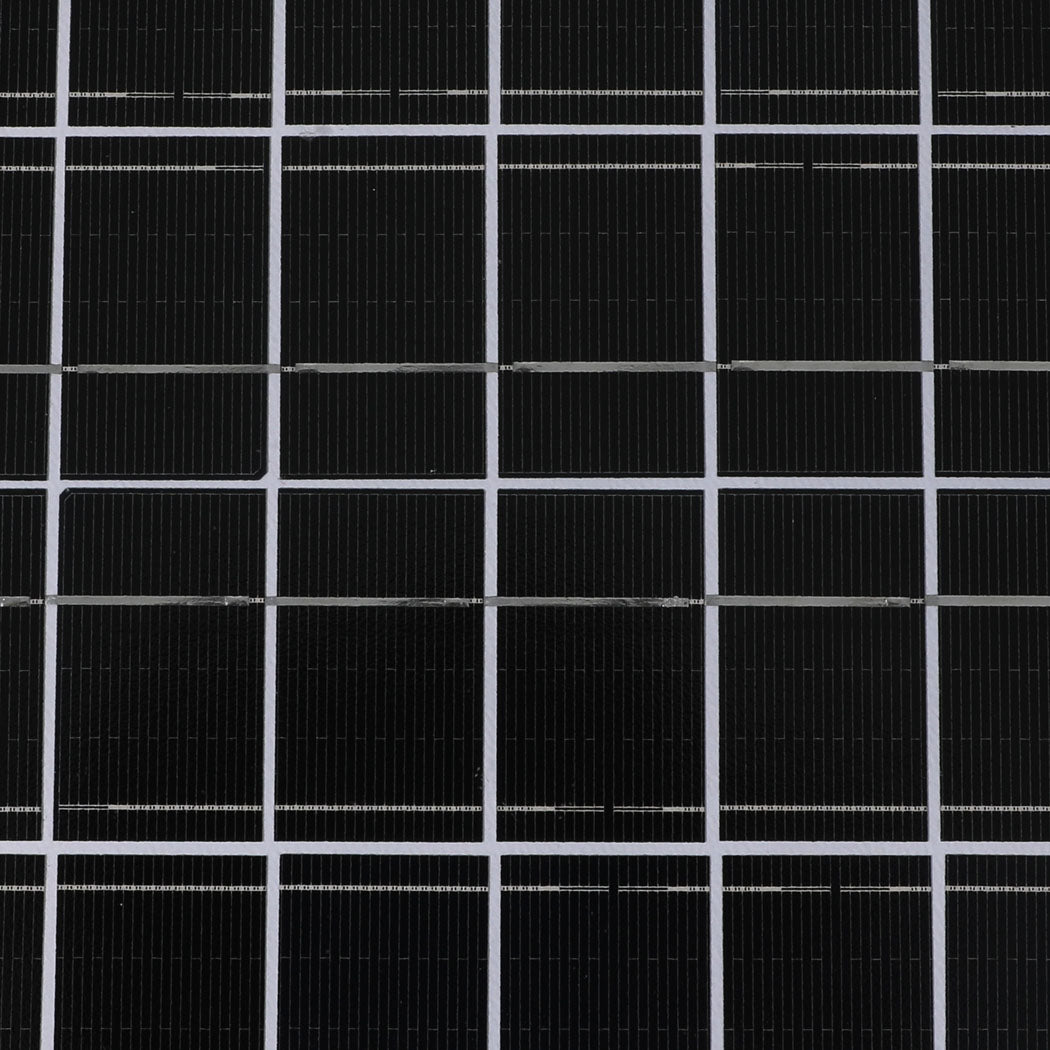

- 36 monocrystalline cells

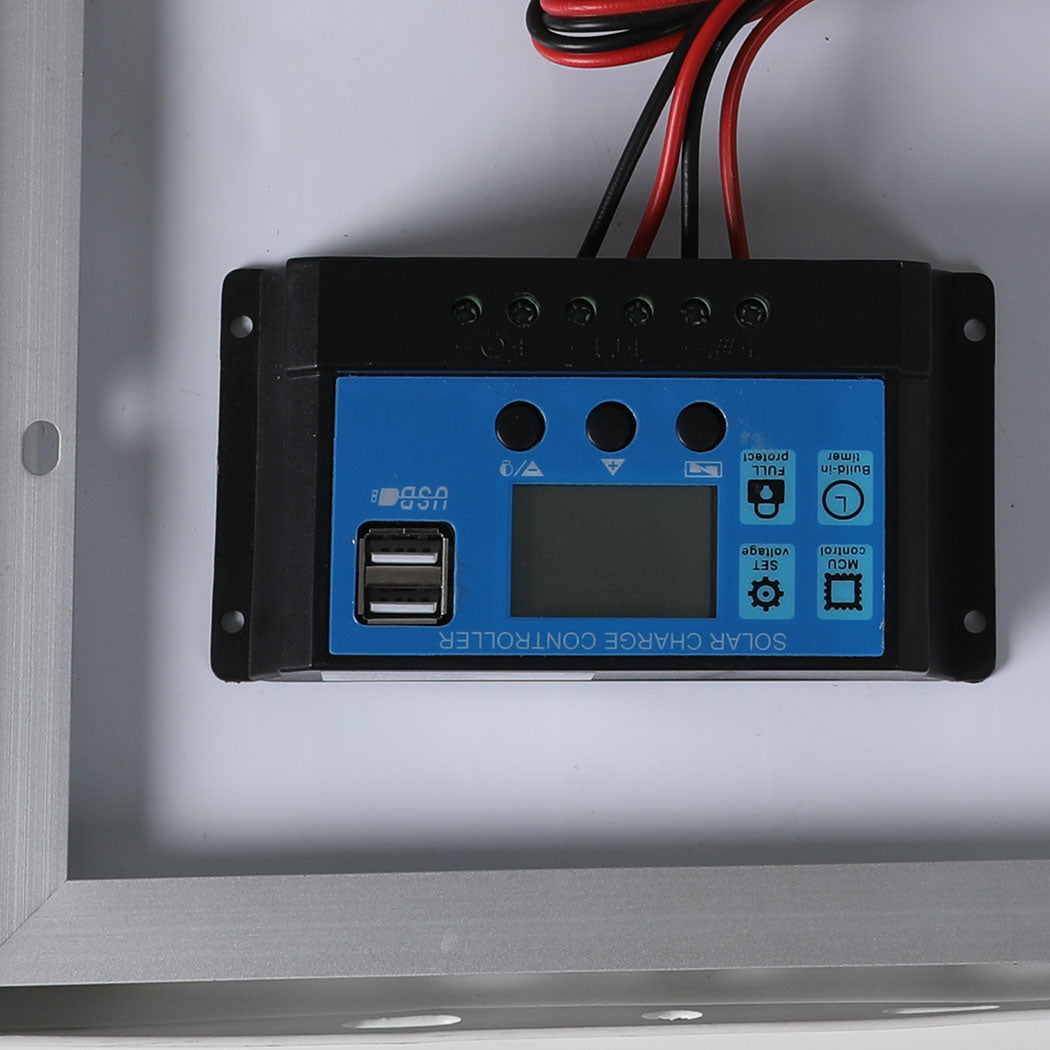

- Solar charge controller

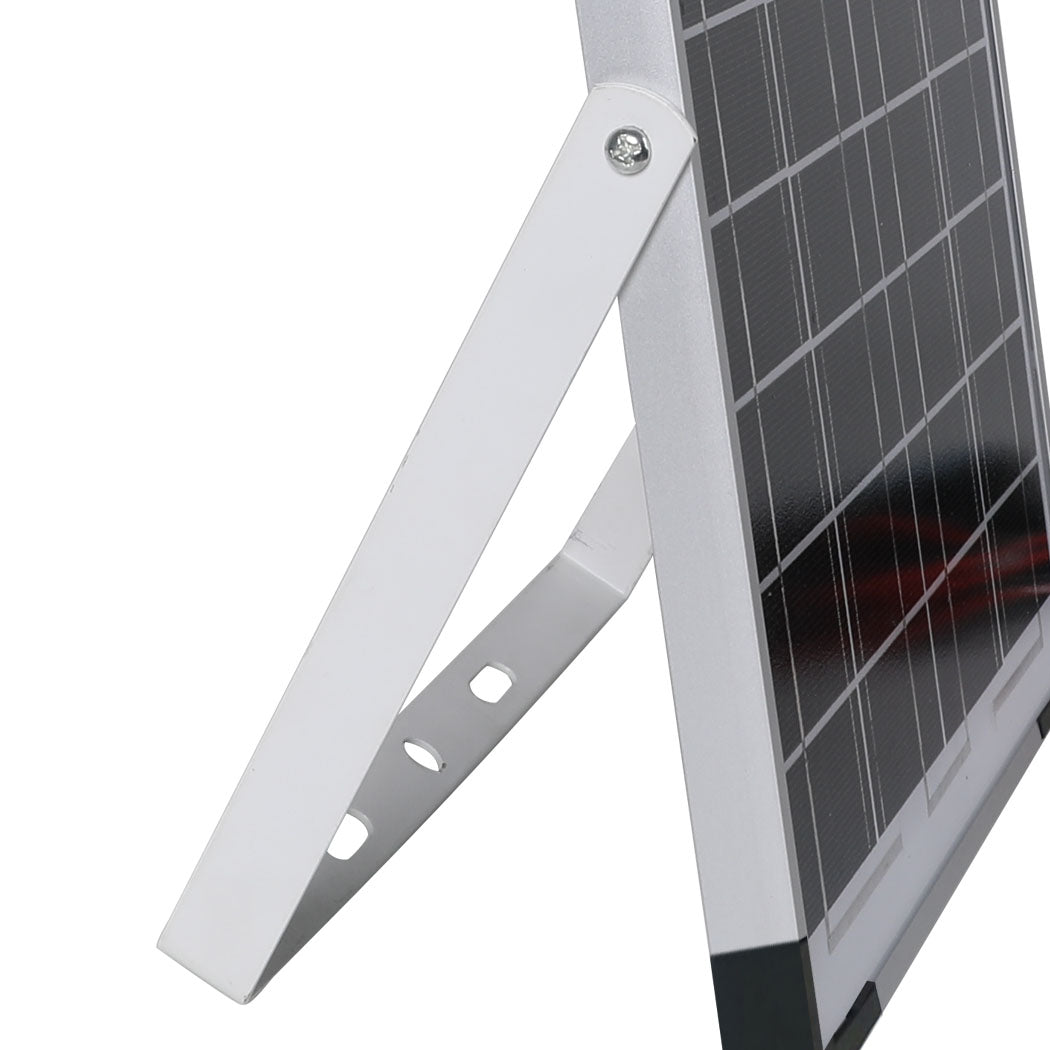

- U-shape bracket
- Dual USB port
- Alligator clips
- Waterproof
- 4 plastic corner protectors
- Portable and lightweight
Specifications
Frame: Aluminium alloy
Material: Monocrystalline
Back material: TPT
Surface: Tempered glass
Maximum power: 10W
Open circuit (Voc): 22V
Short circuit (Isc): 0.63A
Maximum power voltage: 18V
Maximum power current: 0.56A
Working temperature: -45°C to 85°C
Cell efficiency: 20%
Number of cells: 36
Tolerance: ±3%
Connection lead length: 1.8m (regulator to clips)
Connection type: Alligator clips
Cable length: 1.8m

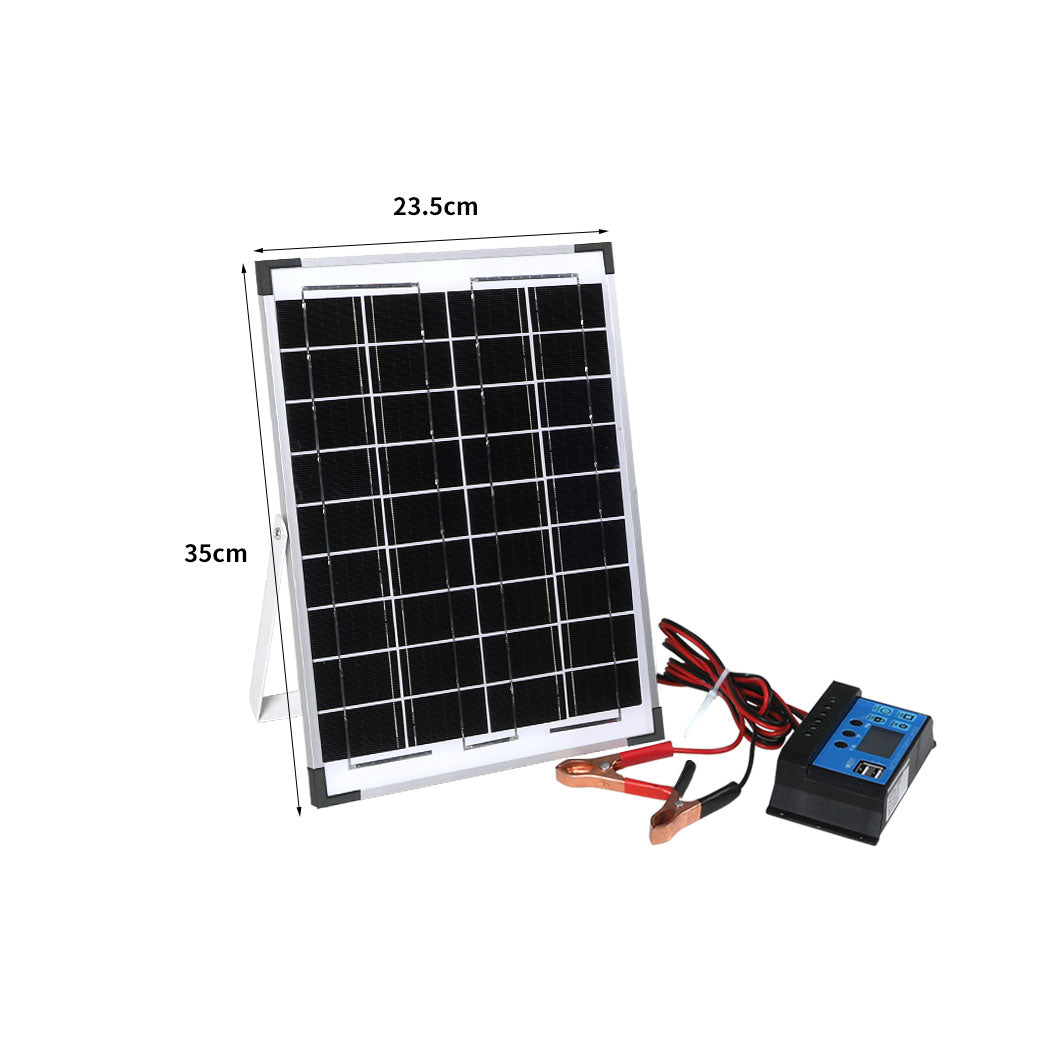

Dimensions: 35cm x 23.5cm x 1.7cm
Colour: Silver and black
Package Contents
- 1 x Solar Panel
- 1 x U-shaped Bracket
- 1 x Regulator
- 2 x Alligator Clip
- 1 x Cable
